Home Garage Door Hardware Bearings & Bearing Plates
R5115

Bearing 1" Commercial with Flanged Retainer Football Style

  • 1" Commercial bearing pressed in a Flanged Retainer Football Style
  • Type: Steel Bore: 1"
  • Inner Race Offest: 13/64"
  • Rated Load Cycles: 250 lb @ 10000 cycles (8')
BK110/PR

Light Duty End Bearing Plate 3-3/8" with Bearing - EBF 338 Residential Sold as a Pair - LH/RH

  • With C16-32F bearing
  • Galvanized steel
  • 3-3/8" shaft offset
  • Flange allows plate to be bolted to the wall for additional support
  • Same as part number 209
R5110

Bearing 1" Commercial

  • 1" inside diameter 2" outside diameter
  • 1" steel bearing allows the shaft to rotate securely on a garage door assembly
  • Same as part number 235
BK438/PR-USA

End Bearing Plate Flanged 11-GA 4-3/8" with Bearing. Commercial Sold as a pair

  • For commercial applications Used on wood jambs
  • Includes (1) RH and (1) LH plate with bearing
  • EBF438- USA Style
BK338/PR

End Bearing Plate Flanged 11-GA 3-3/8" with Bearing. Commercial Sold as a pair

  • For commercial applications Used on wood jambs
  • Includes (1) RH and (1) LH plate with bearing
  • EBF338
BK258/PR

End Plate 2-5/8" flanged with bearing 13GA Sold as a Pair (L & R) (EBF 258)

  • Sold as a pair
  • Box quantity: 30
CBS-338

Center Bearing Support 3-3/8" 8-gauge with Bearing Sold per Piece

  • Heavier gauge allows for use in both 2" commercial or 3" industrial applications
  • Sold per piece
  • For 1" shaft
  • Double clipped ends
BK111/PR

End Bearing Plate Flanged Heavy Duty 8-GA 3-3/8" without Bearing. Sold as a pair

  • They have 4 slots surrounding the hole to accommodate a regular bearing (with flange).
  • A pillow block bearing could be used if needed
  • Includes (1) RH and (1) LH plate
UCF-1

Self-Aligning Cast Flange Bearing 1" Bore UCF205-16

  • Grey cast iron painted.
  • Comes with 2x set-screws 1/4-28
  • Square 4 bolt
UCFL-1

Self-Aligning Cast Flange Bearing Football Style 1" Bore UCFL205-16

  • Grey cast iron painted.
  • Comes with 2x set-screws
  • Football style 2 bolt
C16-32FHD

Bearing 1" x 2" Press Fit Heavy-Duty

  • Flanged ball solid steel bearing
  • Rating: 1 000 000 revolutions
  • Axial load: 150lb max
  • Radial load: 900lb max
R5114

Shaft Bearing 1-1/4" Machined 900LBS

  • Standard press-in bearing no retainer
  • Rated for 900 lbs
SBPFL205-16

Pillow Block Flange Bearing Football Style 1" Bore SBPFL205-16

BK200

Flat End Plate with Bearing 5-5/8" 4-Hole Sold per Piece

  • 8-gauge
BK104

Spring Anchor with Bearing 3-3/8" 13-gauge Sold per Piece

  • For residential applications. Use CBS-338 for commercial / industrial applications
  • Zinc plated 11-guage steel
  • 1" bore bearing installed
  • Single clipped end

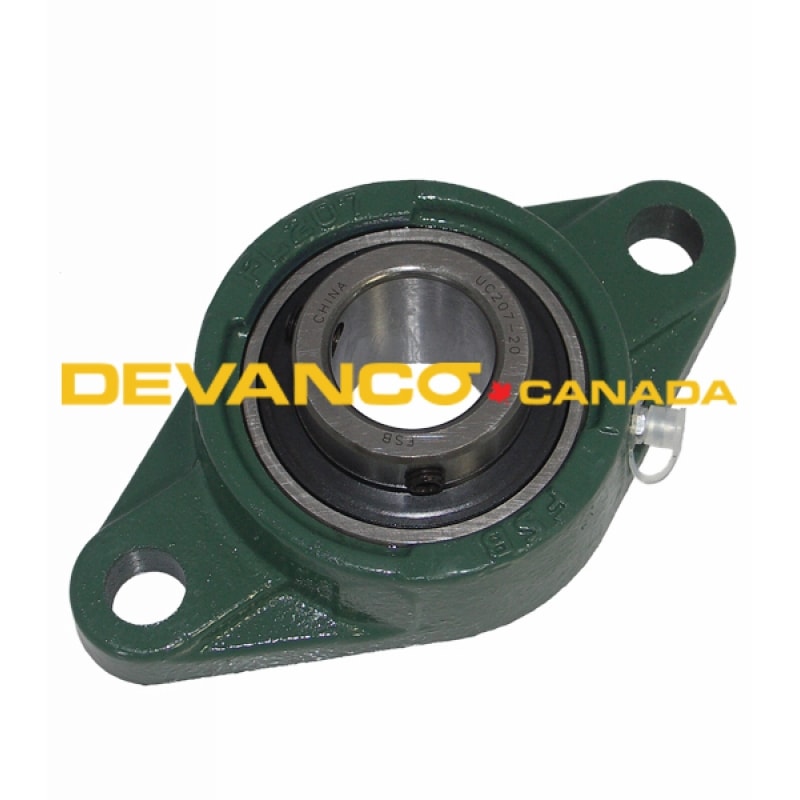

UCFL-1-1/4

Self-Aligning Cast Flange Bearing Football Style 1-1/4" Bore UCFL207-20

  • Grey cast iron painted.
  • Comes with 2x set-screws
  • Football style 2 bolt
  • 5-1/8" hole center to hole center distance
  • 3500 lbs load rating
R5213

Bearing Flangette Retainer Only Standard

  • Does not include bearing
  • For use with all C16-32F and C20-32F
  • Steel Zinc plated finish

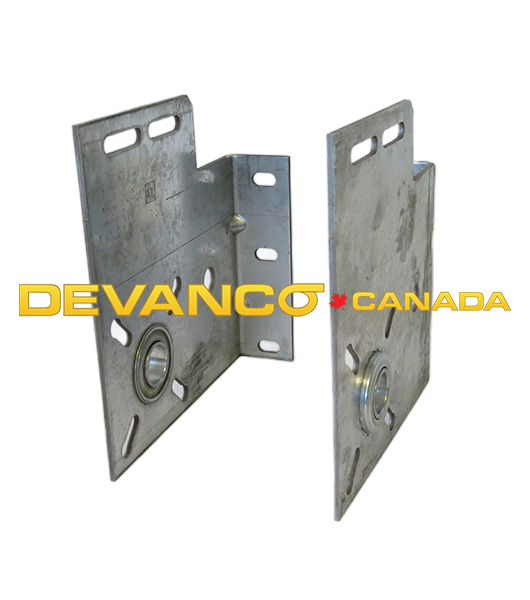

BK600/PR-USA

End Bearing Plate Flanged 8-GA 6" with Bearing. Commercial Sold as a pair

  • For commercial applications Used on wood jambs
  • Includes (1) RH and (1) LH plate with bearing C16-32F
  • EBF6" offset USA Style
  • 1" ID
C20-32F

Bearing 1-1/4" x 2" Press Fit C20-32F+GR 400 LBS

  • Stamped bearing for lighter loads
  • For a heavier duty machined bearing use R5114
C20-SR

Bearing Retainer for 1-1/4" (PFL6Z)

  • Same as PFL6Z. Bearing flangette only.
  • 1-1/4" press fit
