Home Tools

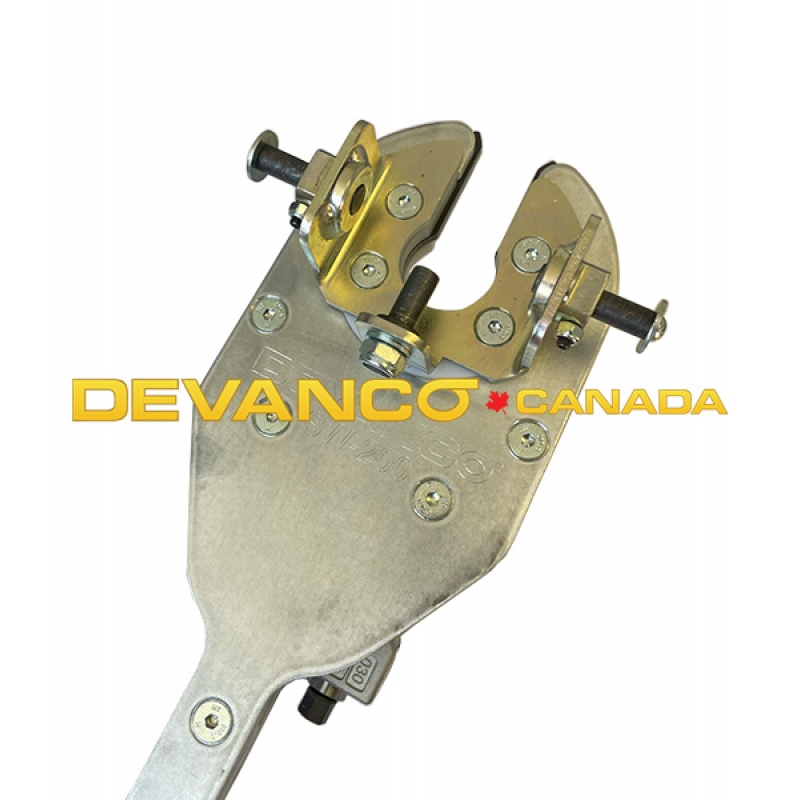

SW-200

Devanco Torsion Spring Winder 200 for 1-3/4" to 2-5/8" Torsion Springs

  • pring Winder 200 is a torsion spring tensioning tool designed for use with a cordless drill (Non-impact). Developed for professionals in the installation and maintenance of residential garage doors. The device prevents work-related accidents and significantly reduces physical strain of door installation work. The Spring Winder 200 is suitable for all residential garage door torsion springsranging from 1-3/4 inches to 2-5/8 inches. Technical Specifications:
  • Weight: 5 kg / 11 lbs
  • Length: 56 cm / 22 inches
  • Max. Torque: 147.51 lb/ft
  • RPM: 500-2000
  • Material: Aluminium steel plastic
    • .......more details
User GuideSell SheetDrawing Specification SW-200Drawing Specifications Gear
SW-500

Devanco Industrial Spring Winder 500 for 3.75" - 6" Torsion Springs

  • W-500 is an Overhead Garage Door Torsion Spring Tensioning Tool for commercial and industrial sectional doors with springs ranging from 3.75" to 6". It can accommodate both 1.0 and 1.25 diameter shafts. This device prevents work-related accidents and significantly reduces physical strain during the torsion spring cranking process The SW-500 is designed for use with a cordless drill (Non-impact) with a 13mm socket to make the job faster and safer than using winding bars. ***Richard Wilcox springs require the SW-500-ADAPTER. Technical Specifications:
  • Weight: 8.6 kg / 18.9 lbs
  • Length: 77.2 cm / 30.39 inches
  • Max. Torque: 369lb/ft
  • RPM: 500-2000
  • Material: Aluminium steel plastic
    • .......more details
User GuideSell Sheet Usage DisclaimerDrawing Specifications SW-500Drawing Specifications Gear
36-RWB-PAIR

Winding Bars Round 36" Set of 2

  • Cold rolled hardened steel.
  • Machined to 1/2" at one end with 5/8" outside dia. on the other.
  • Sold as a pair.
HSC-600

Hand Swager 1/16" - 3/16"

  • Swages 1/16" 3/32" 1/8" 5/32" or 3/16"
  • Tool length is 25-1/2"
  • Wire rope cutting capacity 3/16”
  • Made in Japan
24-RWB-PAIR

Winding Bars Round 24" Set of 2

  • Cold rolled hardened steel.
  • Machined to 1/2" at one end with 5/8" outside dia. on the other.
  • Sold as a pair.
Z9955

Spring Gauge

  • Ruler style spring gauge
  • Stainless steel
  • Confirms spring ID & wire size
  • Place formed end between 2 coils count 20 coils to obtain wire size
AC7

Felco C7 Cable Cutter 3/16" Capacity

  • Tool length: 8"
  • Gives a clean cut without crushing thanks to the triangular cutting system.
  • Blades and centre bolt in high-quality hardened steel for exceptional performance.
  • Thumb catch designed for one-handed operation.
  • Pressed steel handles with non-slip grips
  • Maximum cutting diameter: 7mm / 0.28in
    • .......more details
Data sheet
24-HWB-PAIR

Winding Bars Hex 24" Set of 2

  • Cold rolled hardened steel.
  • Hex shape keeps the bar from rolling away.
  • Machined to 1/2" at one end with a 5/8" outside dia. on the other end
  • Sold as a pair.
BLOCK-YELLOW

Spring Repair Blocks .3175-.3625 Pair

  • For the temporary repair of a broken spring.
  • Wire size: .3175 - .3625
BLOCK-RED

Spring Repair Blocks .3750-.4305 Pair

  • For the temporary repair of a broken spring.
  • Wire size: .3750 - .4305
RCB-2560

Roller Chain Break #25 thru #60

  • Replacement tip included.
BLOCK-BLUE

Spring Repair Blocks .2187-.3065 Pair

  • For the temporary repair of a broken spring.
  • Wire size: .2187 - .3065
RCB-DCB3-PRO

Pro Cut Handheld Chain Break #50 Chain Max Version 3

  • Adjustable chain holder accommodates #65 chain up to #50 chain
  • Quickly and easily handle chain rivet removal saving you time and effort
  • Includes two replacement pins inside the handle chamber
18-HWB-PAIR

Winding Bars Hex 18" Set of 2

  • Cold rolled hardened steel.
  • Hex shape keeps the bar from rolling away.
  • Machined to 7/16" at one end with a 1/2" outside dia. on the other end
  • Sold as a pair.
Z9206

Door Track Anvil

  • Used as a pounding block to hammer mangled track back into shape
  • For 2" track
HSC-600-B

Bench Swager 1/16" - 3/16"

  • Swages 1/16" 3/32" 1/8" 5/32" or 3/16"
  • Wire rope cutting capacity 3/16”
  • Made in Japan
PRO-CUT

Pro-Cut Angle Cutter

  • Performs accurately up tp 2x2 angle.
  • Capacity is 12 gauge steel.
  • Weight is 18.5 lbs.
Z9963

Donkey Cone Torsion Spring Winding Tool

  • Converts a standard 4 hole (90°option) winding cone to an 8 hole (45° option) which is especially helpful in low headroom situations
  • Donkey Cone is a two-piece coupler that securely attaches to a standard 1-3/4” or 2” cone with two fasteners
  • Made from 60/61 heavy duty aluminum
Z9220

Pocket Style Res / Com Combo Spring Gauge

  • Includes wire sizes .1875 thru .5
  • Double saw-tooth leaves for easy wire measuring
  • Stainless steel
  • Includes belt sheath
Z9965

Bearing Blaster

  • Fast and easy way to remove and re-seat bearings into bearing plates
  • Works for both 1" and 1-1/4" bearings
  • Instructions included
Instructions
