Home Gate Operators
SL585103U

LiftMaster Industrial Slide Gate Op.1 HP 208/230/460V 3 Phase - Heater NOT Incl. ***NLA

  • POWER: 115/208/230 VAC. Single Phase
  • ACCESSORY POWER: 24VAC 500mA max.
  • MONITORED SAFETY INPUTS: 3 Main Board 3 Expansion Board.
  • TEMPERATURE SPECIFICATIONS: Without Heater: -4°F (-20°C) to 140°F (60°C). With optional heater -40°F (-40°C) to 140°F (60°C).
  • Heater option: HTRNB or NTR460 for 460V operators
  • UL USAGE CLASSIFICATION I II III and IV.
    • .......more details
Installation manualManuel d'installationFirst step for installationPremière étape pour l'installationSell sheetBrochureWiring diagramSchéma câblage

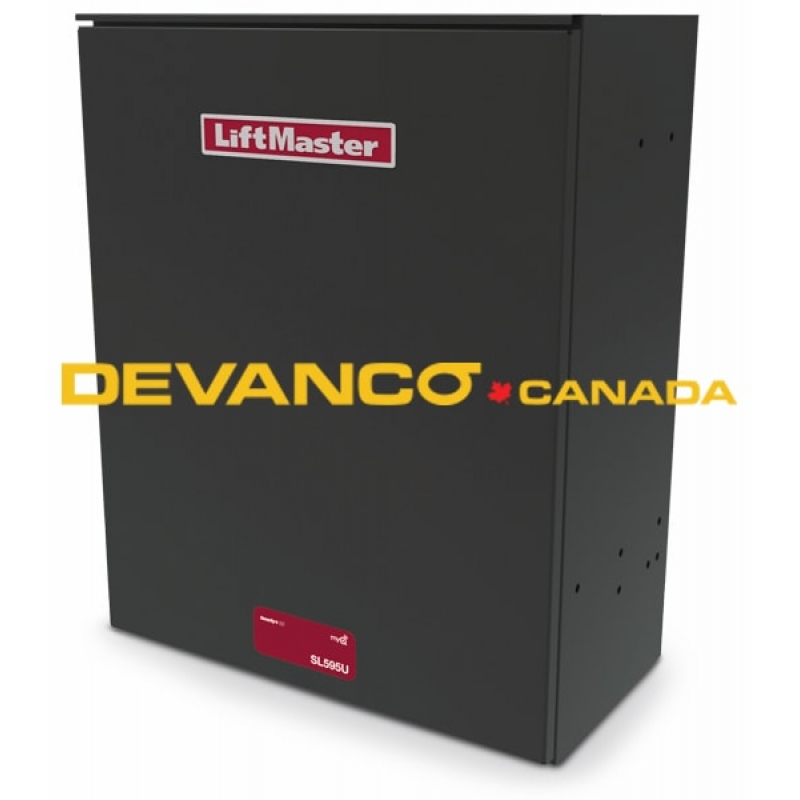

SL595103UL

LiftMaster Dual Voltage Slide Gate Op.1 HP 208/230/460V 3 Phase - Heater NOT Incl. UL325 ***NLA

  • UL 325 compliant system.
  • Power: 208/230/460/575 VAC. 3 Phase.
  • Accessory power: 24VAC 500mA max.
  • Monitored safety inputs: 3 Main Board 3 Expansion Board.
  • Temperature specs: Without Heater: -4°F (-20°C) to 140°F (60°C). With optional heater (HTRNB: HTR460 for 460V operators): -40°F (-40°C) to 140°F (60°C)
  • Gate travel speed: 12 in. per second.
    • .......more details
MASDCBB3

LiftMaster MEGA SPRINT High-Speed DC Barrier Gate Op ARM SOLD SEPARATELY Incl 29-NP712

  • 24VDC (1/2 HP equivalent) motor
  • The heavy-duty motor supports 10000 cycles per day with an operator speed of .9 seconds to open or close.
  • Radio receiver built-in
  • Aluminum alloy chassis
  • Built-in battery backup
  • Soft start/stop
    • .......more details
SL585103UL

LiftMaster Industrial Slide Gate Op.1 HP 208/230/460V 3 Phase - Heater NOT Incl. ***NLA

  • High-Starting Torque continuous-duty motor (available in 1/2 1 and 1 1/2 HP)
  • Operator Duty Rating: 20 cycles per hour
  • Wormgear Reduction: 20:1 Wormgear Reducer
  • Adjustable Friction Clutch: helps to protect gate and operator from damage should the gate meet an obstruction
  • Chain: #50 nickel-plated (25ft. supplied)
  • Chassis: heavy-duty steel chassis and lockable powder-coated steel cover withstands extreme and harsh environments
    • .......more details
Installation manualManuel d'installationSell sheetBrochure
MADCBB3

LiftMaster High Traffic DC Barrier Gate Op. with batteries UL325 ***Must include (2) x 29-NP712 battery***

  • 24VDC barrier gate operator with battery backup
  • Continuous-duty motor with soft start/stop
  • Exceptional starting torque and continuous operation
  • Heavy-duty motor supports 6000 cycles per day
  • Operator speed of 2.5 seconds to open or close
  • Aluminum alloy chassis
    • .......more details
BG790-50-11-HTC

LiftMaster Ind-Duty Wishbone Barrier Gate Op 1/2 HP 115V w/Arm Weight & Heater and TTC

  • A reliable gear-driven barrier gate operator that is perfect for industrial applications.
  • This barrier gate is designed for Wishbone-Type Arms with lengths of up to 24 ft.
  • The BG 790's powdercoated weather-resistant steel enclosure and its 1/2 HP commercial motor ensure strong dependable performance.
  • Standard Features: Control inputs and Adjustable limit settings
  • 02-102 Open/Close Push Button Included
Installation ManualSell Sheet
CSW200501U

LiftMaster Commercial High-Traffic Swing Gate Operator 1/2 HP 120-240VAC

  • First choice for heavy-traffic applications such as large gated communities residential developments commercial complexes and private estates.
  • Unlike other systems the CSW gate operators are designed with a "non-scissor action" swing arm to greatly reduce the risk of injury
  • Bi-Part Delay Monitors and adjusts speed and position of each wing to ensure primary gate closes last.
  • Synchronized Close Simultaneously closes gates.
  • Pre-Motion Warning Alarm Activates onboard alarm three seconds prior to gate motion.
  • External Alarm Reset Button Instantly resets the built-in safety alarm siren.
    • .......more details
SL585503UL

LiftMaster Industrial Slide Gate Op.1/2 HP 208/230/460V 3 Phase - Heater NOT Incl. ***NLA

  • High-Starting Torque continuous-duty motor (available in 1/2 1 and 1 1/2 HP)
  • Operator Duty Rating: 20 cycles per hour
  • Wormgear Reduction: 20:1 Wormgear Reducer
  • Adjustable Friction Clutch: helps to protect gate and operator from damage should the gate meet an obstruction
  • Chain: #50 nickel-plated (25ft. supplied)
  • Chassis: heavy-duty steel chassis and lockable powder-coated steel cover withstands extreme and harsh environments
    • .......more details
SL595203UL

LiftMaster Dual Voltage Slide Gate Op.2 HP 208/230/460V 3 Phase - Heater NOT Incl. UL325 ***NLA

  • UL 325 compliant system.
  • Power: 208/230/460/575 VAC. 3 Phase.
  • Accessory power: 24VAC 500mA max.
  • Monitored safety inputs: 3 Main Board 3 Expansion Board.
  • Temperature specs: Without Heater: -4°F (-20°C) to 140°F (60°C). With optional heater (HTRNB: HTR460 for 460V operators): -40°F (-40°C) to 140°F (60°C)
  • Gate travel speed: 12 in. per second.
    • .......more details
Installation manualManuel d'installationFirst step for installationPremière étape pour l'installationSell sheetWiring diagramWiring diagram 575V
SL595205UL

LiftMaster Industrial Slide Gate Operator 2 HP 575V 3PH with Heater - UL325 ***NLA

  • 3 Phase: 575V is a discrete model without field-selectable voltage.
  • Includes factory installed heater kit.
  • P3 MOTOR® high starting torque continuous-duty motor.
  • Operator Duty Rating: 25 cycles per hour.
  • Metal frame 7-gauge pre-galvanized steel.
  • Worm gear reduction 20:1 worm gear reducer.
    • .......more details
SL585501UL

LiftMaster Industrial Slide Gate Op. 1/2 HP 115/230/208 Volt 1 Ph Heater NOT Incl. ***NLA

  • Features a heavy- duty industrial lockable metal cover
  • MyQ® Technology enables you to securely control and monitor your gate operator from anywhere
  • Homelink® Compatible (version 4.0 and higher)
  • Security+ 2.0® safeguards access with an encrypted tri-band signal to virtually eliminate interference and offer extended range.
  • Manual Disconnect when unlocked allows gate to be operated manually.
  • Quick Close and Anti-tailgate quickly secure property preventing unauthorized access
    • .......more details
BL229-GATE-OP

Automatic Systems Universal Perimeter Raising Barrier Gate 120V

  • Highly configurable barrier designed for many applications and environments
  • Numerous accessories offered allowing to meet various installation constraints and various requirements in terms of security
  • Barrier equipped with control unit allowing operation perfectly adapted to every situation
  • Change of configuration or operation possible even after initial installation of the product
Bilingual parts catalogueTechnical manual
SGP-311-1-115/1

Doorlec Gate Master 1 HP 115V 1 Phase with Heater

  • Post mount heavy-duty industrial slide gate operator
  • Max. gate weight: 2500 lbs
  • Gate travelling speed: 45 ft / minute
  • 175 watt heater with thermostat included
  • Includes Omron reflective photocell
SGP-353-1-575/3

Doorlec Gate Master 1 HP 575V/3P with Heater

  • Post mount heavy-duty industrial slide gate operator
  • Max. gate weight: 2500 lbs
  • Gate travelling speed: 45 ft / minute
  • 175 watt heater included
TCBOD-311

Doorlec Double Arm Barrier Gate Operator 1/2HP 120volts w/ heater and DC2000 board

  • raffic Control Barrier Gate Operator with 24' wishbone arm
Installation manual
HSLG-121

Linear Commercial Slide Gate Operator 1 HP 230V 1 Ph - Heater not Included

  • Max duty cycle: Continuous
  • Integral APeX Controller
  • Double V-belt to chain reduction
  • #40 roller chain
  • Emergency manual disconnect handle
  • Powder coat finish
    • .......more details
VS-GSLG-723

Linear Industrial Duty Variable Speed Slide Gate Op. 2 HP 230V 3 PH

  • Up to 24" per second gate speed
  • Max gate length: 100 ft
  • Max gate weight: 4000 lbs
  • Integral APeX Controller
  • Soft start/soft stop
  • Programmable speed control
    • .......more details
Installation manualSpec sheet
SLR-221

Linear Residential Slide Gate Op. 1/2HP 230V 1 Ph - Cold Weather Package NOT Included

  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
    • .......more details
SLC-221

Linear Commercial Slide Gate Op. 1/2HP 230V 1 Ph - Cold Weather Package NOT Included

  • Integral entrapment sensing system with digital set point for quick accurate adjustment and enhanced safety
  • Continuous-tone entrapment alarm with reset button
  • LED diagnostic display for ease of setup and troubleshooting
  • Selectable pre-start and run alarm with provision for ADA compliant visual pre-start and run alarm
  • Regulated 24 Volt DC power available for access control accessories
  • Integrated maximum run and auto close timer (0-9 minutes)
    • .......more details
HSLG-411

Linear Commercial Slide Gate Operator 3/4 HP 115V 1 Ph - Heater not Included

  • Great for industrial and commercial applications
  • Features the APeX control board
  • Emergency manual disconnect handle
  • Powder coat finish
  • Post mount standard; pad mount optional
  • Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
    • .......more details
