24-230-5

Relay 3 PDT 230V 7A

208/230VAC relay
Used in BG770 gate operators

54-440

Limit Switch Snap Action Standard Short Hinge Roller Lever S54

SPDT

201-300-301-00

Equinoxe Long Range Transmitter O/C/S for 1-Door 433 MHz. Pre-2016

Open/Close/Stop remote for 1 door
Range of approx. 1000ft
A heavy-duty remote for Industrial applications
Old generation - prior to 2016

Programming Instructions Instructions de programmation

L-7-50-0-M

Cable Tie Standard 50 LB Black 7" Nylon 1000/pkg

Ultraviolet Resistant

CPS3-N4

LiftMaster Option Card with CPS-UN4 Eyes for applications requiring 2 sets of photocells

For applications requiring two sets of photoeyes in a damp location
Range up to 45ft water dust and corrosion proof eyes (Nema 4x rating)
Works with Logic 3 4 5 Commercial Operators
Includes Durable steel brackets - floor or track mounting
Kit Inludes one set of CPS-UN4 and one CPS3 card ( CPSIII )

OTBH-6213-AE05

Manaras Trolley Operator 3/4 HP 240V 1Ph with Elect. Circuit Board Apt. Model

A premium low headroom apartment type operator designed for use on industrial standard lift sectional doors with high daily use requirements
30 cycles per hour 100 cycles per day
It incorporates a drum-shoe type solenoid brake.
Tracks are an extra 36 lbs per track
3/4 HP & 1 HP operators come with #41 full roller chain

Installation manual Sell sheet

IRB-RX

EMX Industries Receiver Board Only for IRB-4X *** NLA

6944.1

Whiting Top Closure Assembly Stainless Steel Dry Freight

This is a Whiting original part

SF375-DUPLEX

Spring Fitting 3-3/4" Stationary Side Only for Duplexing (Short Ear). *** Not Sold As A Pair

To make duplex assemblies you require one pair of SF600 (W & S) and only two SF375-DUPLEX stationary plugs only no need for P375 winding plugs

ALUM-429

Aluminum 24" x 100' Spool Ice / Glacier White # 429

20% thicker than the aluminum sold in retail stores (0.022" )
Aluminum on the reverse side
Gentek # 429

Colour chart

AK-11-KEY

Linear Key (1) only for AK-11 (2200-884)

Replacement Key ONLY qty: 1 only

ALUM-801

Aluminum 24" x 100' Spool White / Blanc # 801

20% thicker than the aluminum sold in retail stores (0.022" )
Aluminum on the reverse side
Gentek # 801

Colour chart

C16-32FHD

Bearing 1" x 2" Press Fit Heavy-Duty

Flanged ball solid steel bearing
Rating: 1 000 000 revolutions
Axial load: 150lb max
Radial load: 900lb max

EH5761-A19

Automatic Systems Round Arm Assembly BL27 14'-9 (4.5M)

French description: Ensemble Lisse Ronde 4.5m (14'-9")
For model BL27 gate operator

PS243F

Adjustable DC Power Supply 6V/12/24V 3 AMP

3 preset output voltages : 6/12 and 24VDC (an adjustable mode is also available with a jumper setting)
Full adjustment from 2 to 24VDC if required
Maximum 3 amp (Output at 70 deg. F and free air)
Regulation:97.5%
Maximum input voltage 36 volts
Fuse protected

.......more details

Wiring Diagram / Diagramme de raccordement Specifications / Spécifications

LDM-1

Long Distance Module

Compatible with all door and gate operators that use 24V AC
20 mile range

16-4L290

LiftMaster Cogged Vbelt 4L 29"

9382263800

Square Torsion Spring .375 x 6 x 38" with Cones RHW 1-1/4" Bore

C-600-114-INSTL

Cones 6" 1-1/4" bore Factory Installed (Pair)

For do-it-yourself installation use part no. SF600-114

SPECIALPANEL001

Manaras Complete C-Box Special Order

Includes limit system limit shaft.

CONTACTOR041

Reversing Contactor 1 Ph-9A-24VAC

OSH-6113-CONT-L

Manaras Opera-SH 3/4HP 120V 1Ph with Contactor Left Hand

An ultra high-end heavy-duty V-belt drive industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a chain hoist for manual operation and a floor level engaging device
Clearence: side room required 16"
25 cycles per day > 100 cycles per day

.......more details

Installation manual Sell sheet

K74-18382

LiftMaster Hall Effect Sensor Assembly **to extent of inventory

Formerly 76-G0541 G76G0541
For SW470 with GL or S3 Board SW490 with GL Board

OSH-6233-ECB-LH

Manaras Opera-SH 3/4 HP 208V 3 Ph with Electronic Circuit Board Left Hand

An ultra high-end heavy-duty V-belt drive industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a chain hoist for manual operation and a floor level engaging device
Clearence: side room required 16"
25 cycles per day > 100 cycles per day

.......more details

Installation manual Sell sheet

124844

1" Nylon Bushing

MD-00035

Micanan Offset Link #410

38416A

Genie Belt Drive Sprocket

Works for the following Belt Drive models: Relia-G 600 (model 1024) Relia-G 800 (model 2024) QuietLift 600 (model 1042) QuietLift 800 (model 2042) Overhead Door (model 1026) Overhead Door Legacy 800 (model 2026)
14 tooth belt sprocket for Genie and Overhead Door belt drive garage door openers
Solid metal upgraded replacement sprocket

CP-LX700

Lynx 1-btn Transmitter 372 MHz for Commercial Op with UL325 Board

Works on the UL325 commercial operators
Not compatible with the 372HMz residential operators
Works with on-board receiver on Lynx UL325 operators
Currently no external receiver compatible with this transmitter

Programming instructions Instructions de programmation Compatibility chart

LVB420-11

Laminated Bumper Black 4" Projection Vertical Installation 20" x 11" Sold Individually

For use in low to medium traffic loading docks in factories and warehouses.
Can be used as rub rails at the sides of truck wells
Fabric reinforced rubber pads cut from recycled truck tires.
Rubber pads laminated between steel angles and secured with 3/4” rods
Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
Wall mounting hole size is 1” diameter.

.......more details

Z9205

Door Scale Arm

Counter balance lever arm and a common bathroom scale will allow you to weigh a door up to 1250lbs
Set door on shaft and multiply scale reading times 5 to give you the door weight
Bathroom scale not included

Drawing

MDT-4B

Linear 5-Channel Visor Transmitter MegaCode Block Coded 318 MHz

Compatible with all Linear access receivers and controllers
Superior transmission range
Unique ”Extra” top button
High visibility operate LED
Visor clip included
Sold in lots of 10

.......more details

Programming instructions

K001A5251-4

LiftMaster LGO Replacement Board 315 MHz **DISCONTINUED

PBS3-BLACK

Replacement Button Only - Black

Replacement button for 02-403P

OSH-6233-CONT-L

Manaras Opera-SH 3/4 HP 208V 3 Ph Contactor Left Hand

An ultra high-end heavy-duty V-belt drive industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a chain hoist for manual operation and a floor level engaging device
Clearence: side room required 16"
25 cycles per day > 100 cycles per day

.......more details

Installation Manual Sell Sheet

.363-6-L

Cut-to-Length Torsion Spring .362 x 6" Left Hand Wound Green/White

Priced per inch - cones & filler sold seperately
For factory installed cones use part no. C-600-INSTALLED

.363-6-R

Cut-to-Length Torsion Spring .362 x 6" Right Hand Wound Green/White

Priced per inch - cones & filler sold seperately
For factory installed cones use part no. C-600-INSTALLED

OSH-6112-CONT-R

Manaras Opera-SH 1/2HP 120V 1Ph Contactor Right Hand

An ultra high-end heavy-duty V-belt drive industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a chain hoist for manual operation and a floor level engaging device
Clearence: side room required 16"

Installation Manual Sell Sheet

N7/9-MOD

Micanan Explosion Proof Modification

Modification available on certains models only

D6375-164-125

Cable Drum High Lift 164" 1-1/4" Bore Torque Force Pair

Maximum hi-lift: 164"
Capacity: 800 lbs per drum
Cable length: Floor to shaft center 181" minus amount of Hi-Lift
Cross reference: DNS 410-164 OMI 164HL M162-4165

PEDALU4272

Aluminum Pedestal Post Dual Height 42" & 72"

Pedestal post with hood
High quality aluminum
42" & 72"
Dual face-plate allows for easy wire connections

Shop drawing

3BXT

Control Station Exterior Surface Mount O/C/S N4 Non-Metallic

Double pole contacts
H=5-3/4" W=2-3/4" D=2-1/2"
UL Listed CSA Approved

OSH-6114-CONT-R

Manaras Opera-SH 1HP 120V 1Ph Contactor Right Hand

An ultra high-end heavy-duty V-belt drive industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a chain hoist for manual operation and a floor level engaging device
Clearence: side room required 16"
25 cycles per day > 100 cycles per day

.......more details

Installation Manual Sell Sheet

26-40410

Truck Door T-Style Standard Side Seal 116"

Extruded from long lasting rubber
Seal protects cargo area from dirt and moisture
Used with standard J channel vertical angle with 1" track
Length: 116"
Cross reference: T #69840 W #4019 620200

PB-BE101BP

Contact Block N/O Contact

Base mount
For use with RC P enclosures. IP65

S2TR2641E1

Erone 1-Channel Mini Transmitter 433MHz

Open/Close remote for 1 door
Palm-size transmitters 83 x 48 x 16m (3.25 x 1.9 x 0.6in)
Learn button programming
Ergonomic stylish design Rugged & durable
Light grey base with yellow buttons
unobstructed range: 820 ft (250m)

.......more details

Sell Sheet Brochure Wireless System Chart

1104-ASFT-10FT

Elton Aluminum Stiffener for 1104 10ft

Prevents the 1104 from buckling in the hot sun

26-40045

Truck Door Offset Bottom Seal 98" Long for Whiting Dryfreight Doors

Co-extruded using rigid PVC backing with flexible PVC seal.
To be used with the offset U-channel retainer only (26-40037 or 26-40039)

CONTACTOR043

Manaras Reversing Contactor Allen Bradley 16A-24VAC

AB #100-C16*10

MA117

LiftMaster Counterweight for Arms 15ft & Up

K001A6426-1

LiftMaster Control Board with Mounting Bracket for LA412

GH4416-07-R

Green Hinge #7 12-ga Right Hand *** to extent of inventory

A unique spring-loaded hinge that allows automatic adjustment of the door.
Provides a close tight seal of the door to the building
Green powder coat finish
For doors up to 20ft

GH4416-05-R

Green Hinge #5 12-ga Right Hand *** to extent of inventory

A unique spring-loaded hinge that allows automatic adjustment of the door.
Provides a close tight seal of the door to the building
Green powder coat finish
For doors up to 20ft

1104-8'-DK-SAND

Residential Side & Top PVC Weather-Strip with cap 8' Long - Dark Sandstone (DDG)

Garaga dark sandstone rigid vinyl retainer with Garaga dark sandstone flexible vinyl seal.
Dual fin vinyl.
Comes with cap to hide screws.

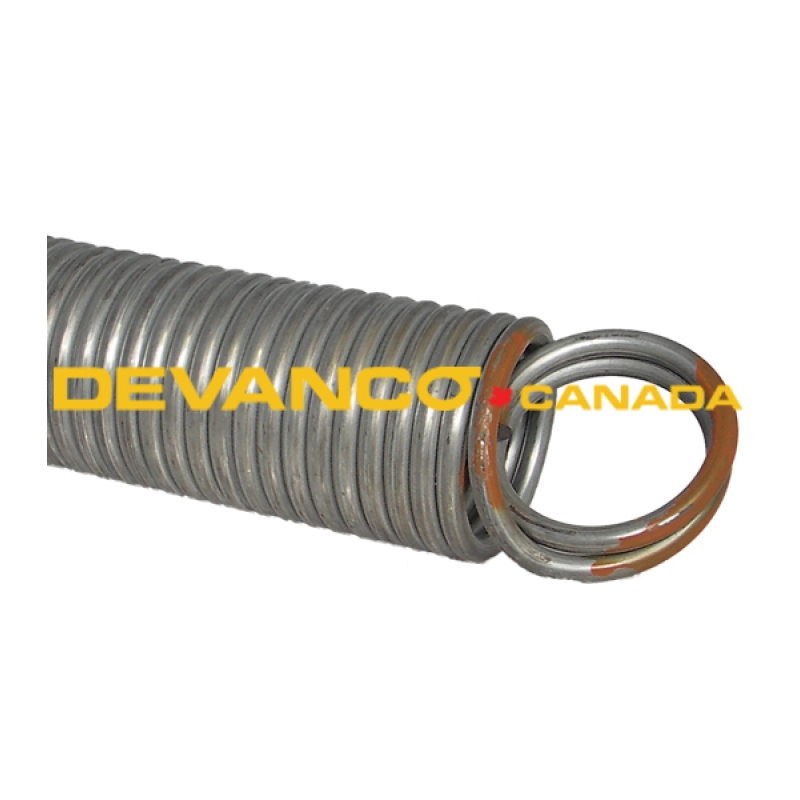

27-48-340

Extension Spring 8' Door - 340 lbs Blue

Single - Loop
27" long 48" stretch 340 lb load
Sold individually
Rated for 10000 cycles

Spec Sheet

27-48-100

Extension Spring 8' Door - 100 lbs Tan

Single - Loop
27" long 48" stretch 100 lb load
Sold individually
Rated for 10000 cycles

Spec Sheet

H12G04-SS

Hinge #4 x 12 gauge Stainless Steel

Manufactured with 12ga. Rust-Resistant Stainless Steel
Universal Design
Fits Most Overhead Sectional Doors
Priced Per Each

ME120-BLK-E-4FT

Miller Edge 2-Wire Black End Outlet 4 ft Long

Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
Touch sensitive signaling
Temperature range: -30F to 155F
Lead wire: 18 gauge 2ft length
Sensitivity: nominal 4 PSI
2 wire NO configuration

.......more details

Installation Manual Sell Sheet

MP00013

Micanan Up-Charge Track and #410 (#48) chain for 14' h Door *Actual length 198"*

For 1/3 HP and 1/2 HP operators only

17330

Doorlec DC-3100R 3-Channel O/C/S Receiver 301 MHz

Range of approx. 175ft (53.34m)
8 dip-switches for programming
24/120V selectable
Made from polycarbonate plastic for rugged and weatherproof use
Includes a built-in antenna to eliminate interference and provide continuous reception
A plug-in wiring harness is provided to facilitate interconnection between power supply of operator and receiver

.......more details

2376.177_25.860

Whiting Torsion assembly .177 wire size 25" spring length 86" shaft

PRO-LH-5021U-LH

Micanan 1/2HP 230V 1P Medium-Duty Jackshaft N1 Eyes Monitored ECB Left Hand (PRO LHE)

Designed for use on commercial sectional doors with high or vertical lift
May also be used on small rolling grilles with max. 15 cycles per hour
Includes chain hoist
Includes solenoid brake
On board receiver with antenna
On-Board receiver holds up to 20 transmitters

.......more details

Installation manual Specification sheet

PRO-LH-5011U-LH

Micanan 1/2HP 115V 1P Medium-Duty Jackshaft N1 Eyes Monitored ECB Left Hand

Designed for use on commercial sectional doors with high or vertical lift
May also be used on small rolling grilles with max. 15 cycles per hour
Includes chain hoist
Includes solenoid brake
On board 372 MHz receiver with antenna
On-Board receiver holds up to 20 transmitters

.......more details

Installation manual Specification sheet

WKP5LM3

LiftMaster Wireless Keypad 5-Code ** Replaced by KPW5

Wireless access control keypad
Same features as WKP250LM3
5 code capacity - 4-digit codes
2-way design with confirmation beep
900MHz

Programming Instructions

AC9

Felco C9 Cable Cutter 1/4" Capacity

Tool length: 13"
Gives a clean cut without crushing thanks to the triangular cutting system.
Blades and centre bolt in high-quality hardened steel for exceptional performance.
Thumb catch designed for one-handed operation.
Pressed steel handles with non-slip grips
Maximum cutting diameter: 9mm / 0.35in

.......more details

Data sheet

OEB-1

Super Sneaky Operator Extension Bracket

Improves installation safety
Extends operator rail travel length. Use a 7′ rail for 7’6" – 8′ tall doors
Saves extra 2" of headroom required by draw bar type operators
Pulls door clear of opening
Eliminates garage door overhang
Greatly increased installation ease & safety

.......more details

7549

Whiting Winding Cone for 2-5/8" ID Spring Wire Curbside (RH)

A Whiting original

SLT14-22P

Rolling Steel 3" Flat Slat 22-ga Primed

342.155

Whiting Intermediate Panel Tongue & Groove 15-1/2" x 96" Price on Request

Standard size panel primer only

PL-B12-ARM-CURV

Lynx Curved Arm for Proline Operator

Used on Proline residential garage door openers

.343-6-LH-C

Torsion Spring .343 x 6" x 144" LH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .343 ID: 6" Length: 12 ft

.343-2-5/8-RH-C

Torsion Spring .343 x 2-5/8" x 144" RH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .343 ID: 2-5/8" Length: 12 ft

.312-6-LH-C

Torsion Spring .312 x 6" x 144" LH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .312 ID: 6" Length: 12 ft

.306-5-1/4-RH-C

Torsion Spring .306 x 5-1/4" x 144" RH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .306 ID: 5-1/4" Length: 12 ft

.295-6-RH-C

Torsion Spring .295 x 6" x 144" RH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .295 ID: 6" Length: 12 ft

.262-1-3/4-LH-C

Torsion Spring .262 x 1-3/4" x 144" LH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .262 ID: 1-3/4" Length: 12 ft

.250-3-3/4-RH-C

Torsion Spring .250 x 3-3/4" x 144" RH Coated ** Price by Quote Only

Black Oxide coating
Wire size painted on spring
Wire size: .250 ID: 3-3/4" Length: 12 ft

D400-144-1

Cable Drum Standard Lift 12' Torque Force Pair

12 ft Standard lift cable drum. Aluminum die cast alloy.
Max. door height: 12'-1".
Rated lift per drum: 375 lbs.
Max. cable diameter: 5/32".
Mounting: 1" tube or solid shaft with 1/4" keyway.
Cross references: DM413 DNS 4-13 OMI 2100.

.......more details

RN0029-SS

Roller 2" White Nylon 9" Stainless Steel Stem Double Sealed Bearing

A supreme double sealed bearing roller that never requires lubrication
Ideal for high usage and high moisture areas ie..carwash
7/16" stainless steel shaft.
200 lb load 50000 cycles

OPH-6113-CONT-R

Manaras Opera-H 3/4HP 120V 1Ph with Mechanical Contactor Right Hand

A heavy-duty industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a self-engaging chain hoist for manual operation
Clearence: side room required 15"

Installation Manual Sell Sheet

7515.1

Whiting Stainless Steel #77 Lock Handle Keeper

IRB-S

EMX Industries Mounting Screws for Photoeyes Sold as a Set of 2

Two sets of screws are required for each bracket installed

BK304

Jamb bracket J-04 #4 12 gauge

Sold by the piece
Height 3.00" Length 1.9" Width 2.45"
Bright zinc plated 12 gauge steel
2" long track mounting slot
manufactured to accept ¼” fasteners when attaching to the track and 5/16” to lag to the wall.

BK302

Jamb bracket J-02 #2 12 gauge

Sold by the piece
Height 2.50" Length 1.9" Width 2.45"
Bright zinc plated 12 gauge steel
2" long track mounting slot
manufactured to accept ¼” fasteners when attaching to the track and 5/16” to lag to the wall.

SOLID_SHAFT_15'

Solid Shaft 1" Keyed 15 ft Galvanized

Actual length is approx. 15'-1"

MX00147-OLD

Micanan Complete Clutch Kit for PRO-TB Old Style Frame

Before 2006
9" Diameter

MODKIT074

Manaras Hand Crank Field Modification Kit

For in-field upgrade on OGH and MGH operators

Installation Manual

CARRIAGE006

Manaras Trolley Carriage Aluminum Die Cast

SETR2641-TM

Erone 4-Channel Wireless Wall Switch Transmitter 433MHz

For sun-blinds and awnings.
Frequency: 433.92 MHz.
Range: Up to 200m (Open-field).
Dimensions (L x W X D): 80 x 80 x 25mm.
Input voltage: 3V Battery (CR2032).

User Manual Wireless System Chart

OHJ-6233-ECB

Manaras Heavy-Duty Jackshaft Operator 3/4 HP 208V 3 Ph with Elect. Circuit Board

25 cycles per hour 100 cycles per day
An Industrial duty operator featuring both the patented Hoist-a-Matic a self-engaging chain hoist for manual operation as well as a floor level disconnect
Specifically designed to motorize grills when a manual egress is required
Mechanical brake
Hoist on right standard
Full overload protection

.......more details

Installation Manual Sell Sheet

OPH-6433-ECB

Manaras Opera-H 3/4HP 480V 3Ph with Electronic Circuit Board

A heavy-duty industrial jackshaft operator
For use on Standard High and Vertical Lift sectional doors
Can also be used on Rolling doors and Grilles
Comes with a self-engaging chain hoist for manual operation
Clearence: side room required 15"

Installation Manual Sell Sheet

OPJ-6113-ECB

Manaras Heavy-Duty Jackshaft Operator 3/4 HP 120V 1 Ph with Elect Circuit Board

An industrial operator designed for use on standard high and vertical lift sectional doors
Can also be used on rolling doors and grills
It incorporates a floor level disconnect mechanism for manual operation
25 cycles per hour 100 cycles per day
Continuous-duty single phase capacitor start or 3 phase motor open drip proof
Mechanical brake

.......more details

Installation Manual Sell Sheet

SETMCIC9V

Erone 1-Channel Wireless Module 433 MHz

You can replace the battery with a power supply by removing the SETMC1C9V battery adapter and connect the red (9V) and black (0V) wire into power supply
Connect a door contact motion detector or any relay activated devices to the SETMC1C9V it will communicate their status wirelessly
Works with any 433 MHz Erone receiver

Wireless System Chart

AK-21

Linear Interior Digital Keypad***to extent of inventory

The keypad is housed in a rugged plastic enclosure and is designed to be mounted in a standard single-gang electrical box. The die-cast keys have bright easy-to-read yellow graphics.
It is supplied with four different plastic snap-on mounting bezels to customize the look of the keypad. The satin-chrome bezel comes factory installed on the keypad. The white ivory & bronze bezels are packaged separately.
Up to 480 entry codes from 1 to 6 digits in length can be programmed. They can activate either or both of the relay outputs.
Relay #1 has a 5 Amp capacity. Relay #2 has a 1 Amp capacity. The relays can be set for timed or latch-on/latch-off toggle operation per each individual entry code.
The on or off toggle state of a relay is maintained even after power interruption. When power is restored to the keypad each relay will assume the state it was in when power was removed.

Installation Manual

GHX-6112-CONT-L

Manaras Explosion Proof Gear Head 1/2HP 120V Contactor Left Hand

Nema 7/9 control box
Electrical connections from motor to control box consists of hazardous location certified fittings and NEMA 7/9 O/C/S push-button station
